7.5 Kw Motor Power EUI EUP HEUI Diagnostic Test Bench with 0-2700 Bar Rail Pressure and Automated Controls

MOQ : 1

Price : 6400

Model NO. : JZ-726

Motor Power : 7.5 Kw

Power : 3-Phase 4-Wire 380V 50/60Hz

Rail Pressure : 0-2700 Bar

Rail Pressure Precision : 5 Bar

Filter Precision : < 5 Um

Tank Volume : 20 L

Diesel Tank Volume : 20 L

Fuel Temperature : 38-42 'c

Net Weight : 920kg

Metering Way : Flow Sensor

Specification : 2000*1200*1950 mm

Speed Control Mode : Frequency Converter

Cooling System : Fan Cooling

Heating System : Air Conditioning

Contact Now

Product Introduction

JZ-726 EUI EUP HEUI All-In-One Machine adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors.
It can test thousands of injectors. The experimental data are complete. 7.5 Kw Motor Power EUI EUP HEUI Diagnostic Test Bench with 0-2700 Bar Rail Pressure and Automated Controls

7.5 Kw Motor Power EUI EUP HEUI Diagnostic Test Bench with 0-2700 Bar Rail Pressure and Automated Controls

Standard Functions:

Test unit injectors (EUI)
Test unit pumps (EUP)
Testing HEUI injectors

Optional Functions:

TestX15,Q60HPI

Assistant Functions:

Fuel tank oil level lower limit alarm
Equipped multiple high-precision filters
Test oil automatic heating/cooling control

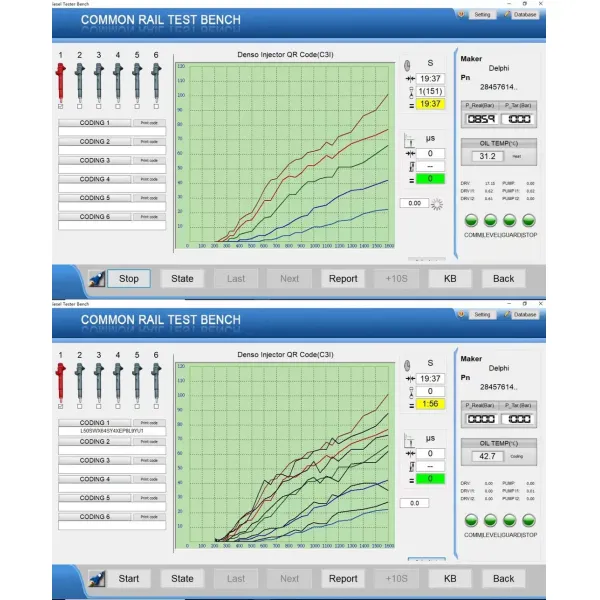

Real-time display injection/return curves

Product Details

Technical Parameters

Technical Parameters
Main Output				7.5KW
Speed Control Mode				Frequency Converter
Power				3-Phase 4-Wire 380V 50/60HZ
Cooling System				Fan Cooling
Heating System				Air Conditioning
Nozzle Sensor				Gear Flow Sensor
CR Pressure				0-2700 Bar
Rail Pressure Precision				±5 Bar
Oil High Pressure				0-350 Bar
Diesel Low Pressure				0-25 Bar (manual)
Diesel Tank Volume				20L Filtration Accuracy: 3 µm
Oil Tank Volume				20L Filtration Accuracy: 5 µm
Pulse Width				100-3000 µs
Fuel Temperature				40±2°C
Machine Dimension				190010501830 mm
Packing Dimension				200012001950 mm
Net Weight				920KG
Gross Weight				1030KG
